| Brand Name: | Pronets or OEM |
| Model Number: | PPP-5516F-40CD |
| MOQ: | 1pcs |
| Price: | Negotiable |
PPP-5516F-40CD compatible with Cisco Juniper Huawei HP Aruba H3C

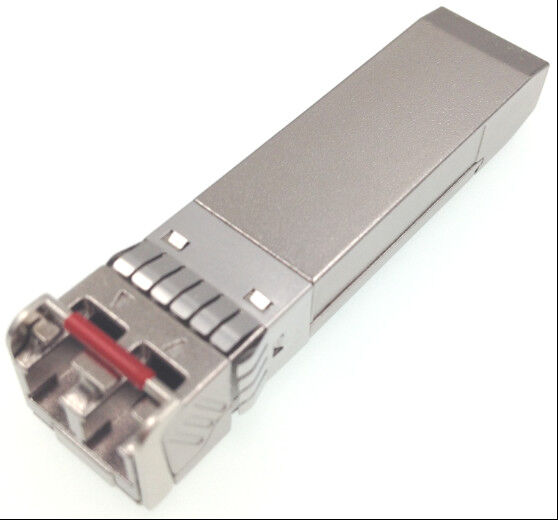

PPP-5516F-40CD
14.025Gbps SFP+ Transceiver, Single Mode, 40km Reach
Product Features
Supports up to 14.025Gbps bit rates
Hot-pluggable SFP+ footprint
1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Applications
4.25/8.5/14.025G Fibre channel
Other Optical links
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
