| Brand Name: | PRONETS OR OEM |
| Model Number: | 1×16 |
| MOQ: | 1 |
| Price: | Negotiable |

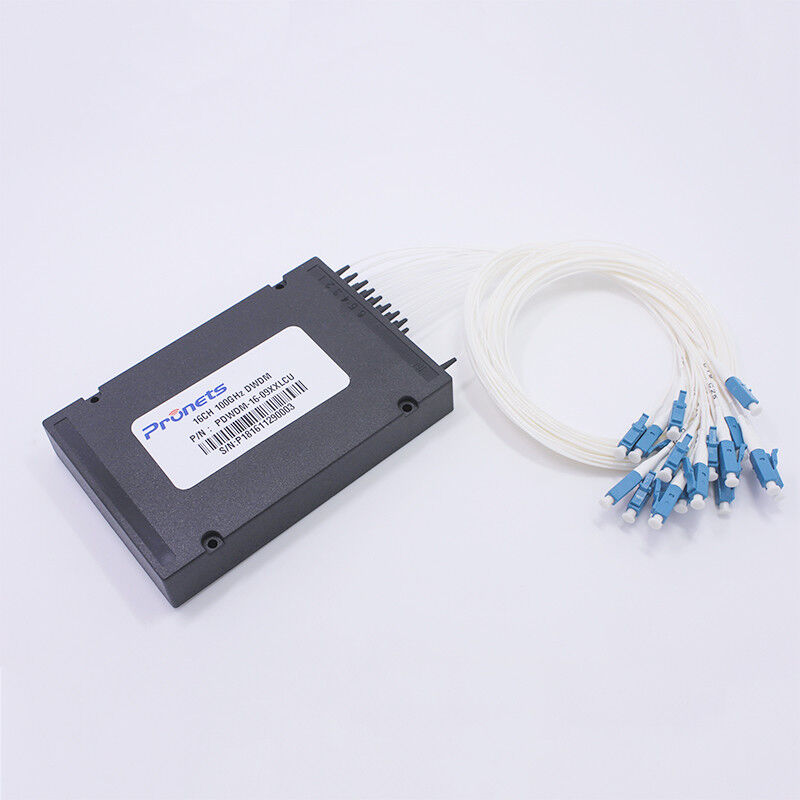

DWDM Mux/Demux Module
DWDM 100GHz ABS Modular
1. Features
l Low Insertion Loss
l High Isolation
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength:
From 1260nm to 1620nm
l Wide Operating Temperature:
From -40℃ to 85℃
l High Reliability and Stability
2. Applications
l CWDM System
l PON Networks
l CATV Links
3. Compliance
l Telcordia GR-1209-CORE-2001
l Telcordia GR-1221-CORE-1999
l ITU-T G.694.1
l RoHS
1×16 DWDM Mux & Demux Module
| Parameters | ||
| Channel Space(GHz) | 100 | |
| Center Wavelength(nm) |
45CH/46CH/47CH/48CH/49CH/50CH/51CH/52CH/ 53CH/54CH/55CH/56CH/57CH/58CH/59CH/60CH |
|
| Channel Passband (@-0.5 dB) | 0.22 | |
| Fiber Type | SMF-28e with 0.9mm Loose tube | |
| Length(m) | 1.0±0.1 | |
| IL (dB) | ≤4.2 | |
| Isolation (dB) | Adjacent Channel | ≥25 |
| Non-Adjacent Channel | ≥35 | |
| PDL (dB) | ≤0.15 | |
| PMD(ps) | ≤0.1 | |
| RL(dB) | ≥45 | |
| Directivity (dB) | ≥50 | |
| Maximum Optical Power (mw) | 300 | |
| Operating Temperature (℃) | -40～85 | |
| Storage Temperature (℃) | -40～85 | |
| Package Dimension (mm) | 19″Rack mount | |
| Connector Type | LC/UPC | |
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
