100m QSFP DD 400G 800G SR8 Coherent Optical Transceiver Module MPO16

Name: 100m QSFP DD 400G 800G SR8 Coherent Optical Transceiver Module MPO16
Brand: Pronets Technology (Shenzhen) Co., Ltd.
SKU: PQD-85EG-SR8C(MPO16)
Availability: InStock

Brand Name:	Pronets or OEM
Model Number:	PQD-85EG-SR8C(MPO16)
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL FCC RoHS CE FDA

Brand Name:

Pronets Or OEM

Certification:

UL FCC RoHS FDA

Type:

Fiber Optical Active Passive Product

Keyword:

Optical Transceiver/Network Switch/Media Converter

Packaging Details:

plastic containers

Supply Ability:

10000pcs/day

Highlight:

qsfp dd 400g Module

coherent qsfp dd 400g

MPO16 coherent optical transceiver

Product Description

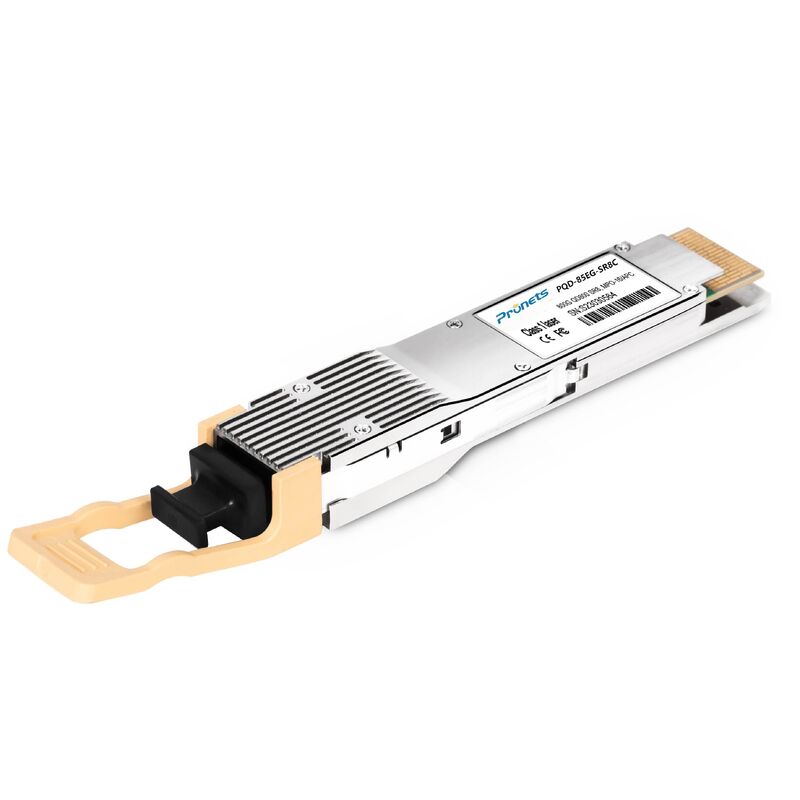

800G QSFPDD SR8 100m Optical Transceiver Module PQD-85EG-SR8C(MPO16)

Features

8 channels full-duplex transceiver modules

Transmission data rate up to 106.25G per channel

8x106.25Gbps PAM4 transmitter and PAM4 receiver

8 channels 850nm VCSEL array

8 channels PIN photo detector array

Internal CDR circuits on both receiver and transmitter channels

Power consumption <13.5W

Hot Pluggable QSFPDD form factor and Compliant with CMIS

Maximum link length of 60m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC

MPO16 APC connector receptacle

Built-in digital diagnostic functions

Operating case temperature 0℃ to +70℃

3.3V power supply voltage

RoHS compliant(lead free)

Applications

IEEE 802.3db 2 x 400GBASE-SR4 Ethernet (PAM4)

The transceiver is designed for Ethernet, Telecom and Infiniband use cases.
