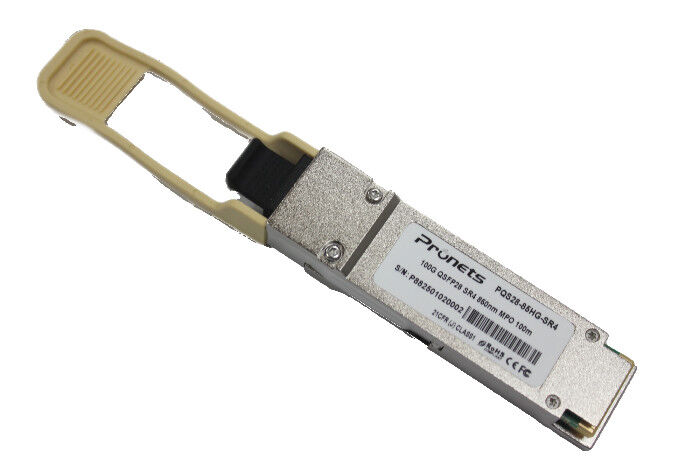

850nm QSFP28 100GBASE SR4 Multi Mode QSFP Optical Transceiver 100M SR4

Name: 850nm QSFP28 100GBASE SR4 Multi Mode QSFP Optical Transceiver 100M SR4
Brand: Pronets Technology (Shenzhen) Co., Ltd.
SKU: PQS28-85HG-SR4
Availability: InStock

Brand Name:	Pronets or OEM
Model Number:	PQS28-85HG-SR4
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL FCC RoHS CE FDA

Brand Name:

Pronets Or OEM

Certification:

UL FCC RoHS FDA

Type:

Fiber Optical Active Passive Product

Keyword:

Optical Transceiver/Network Switch/Media Converter

Packaging Details:

plastic containers

Supply Ability:

10000pcs/day

Highlight:

850nm QSFP Optical Transceiver

100M QSFP Optical Transceiver

Multi Mode qsfp28 100g sr4

Product Description

PQS28-85HG-SR4 100Gbps QSFP28 Transceiver, Multi Mode, 100m Reach

DESCRIPTION

PQS28-85HG-SR4 is 100Gb/s QSFP28 SR4 transceiver. It is compliant with the QSFP28 MSA and

IEEE 802.3bm. QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is capable

of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.

FEATURES

Four-channel full-duplex transceiver

25.78Gb/s data rate per channel
Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)
Power dissipation < 2.5W

Built-in digital diagnostic functions

Built-in CDR

850nm VCSEL transmitter

Good EMI performance

Single 3.3V power supply

RoHS compliant

Operating case temperature: 0~+70°C

APPLICATION

100GBASE-SR4 100G Ethernet

High-speed interconnects within/between switches, routers and transport equipment

Server-server clusters

Super-computinginterconnections

Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
