| Brand Name: | Pronets or OEM |
| Model Number: | PX-31192-LRCx |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |

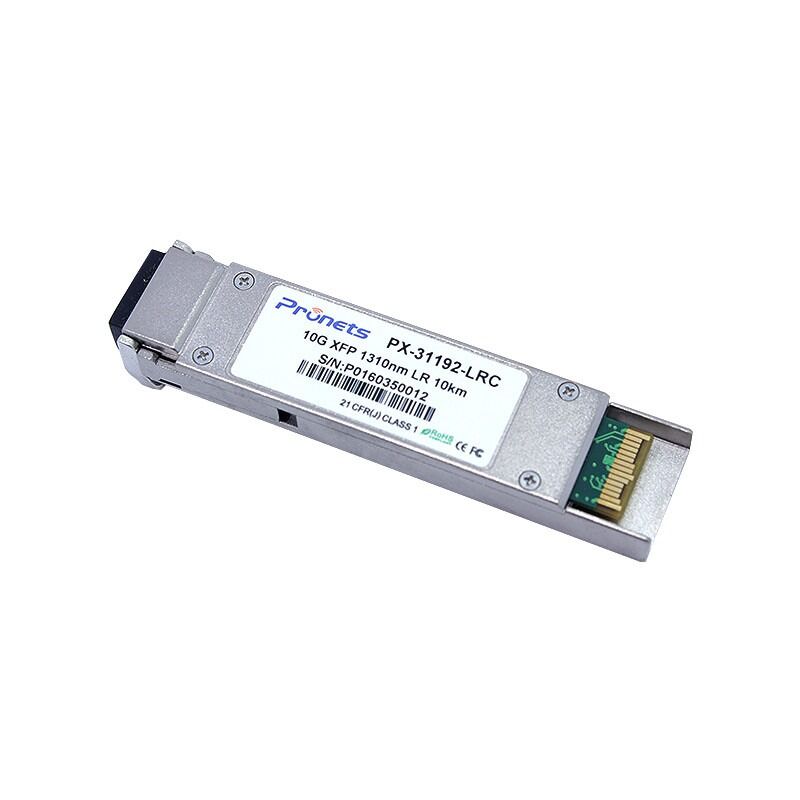

PX-31192-LRCx
10Gbps XFP Optical Transceiver, 10km Reach
Features
Supports 9.95Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint
Maximum link length of 10km with SMF
1310nm Uncooled DFB laser
XFP MSA package with duplex LC connector
No reference clock required
+3.3V +1.8V power supply
Power dissipation <2.5W
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Applications
SDH STM I-64.1 at 9.953Gbps
10GBASE-LR/LW 10G Ethernet
1200-SM-LL-L 10G Fibre Channel
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links, up to 11.1Gbps
Description
Pronets PX-31192-LRCx is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.
The transceiver module comprises a transmitter with 1310nm uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
