| Brand Name: | Pronets or OEM |
| Model Number: | PBX-2733192-L2C |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
PBX-2733192-L2C

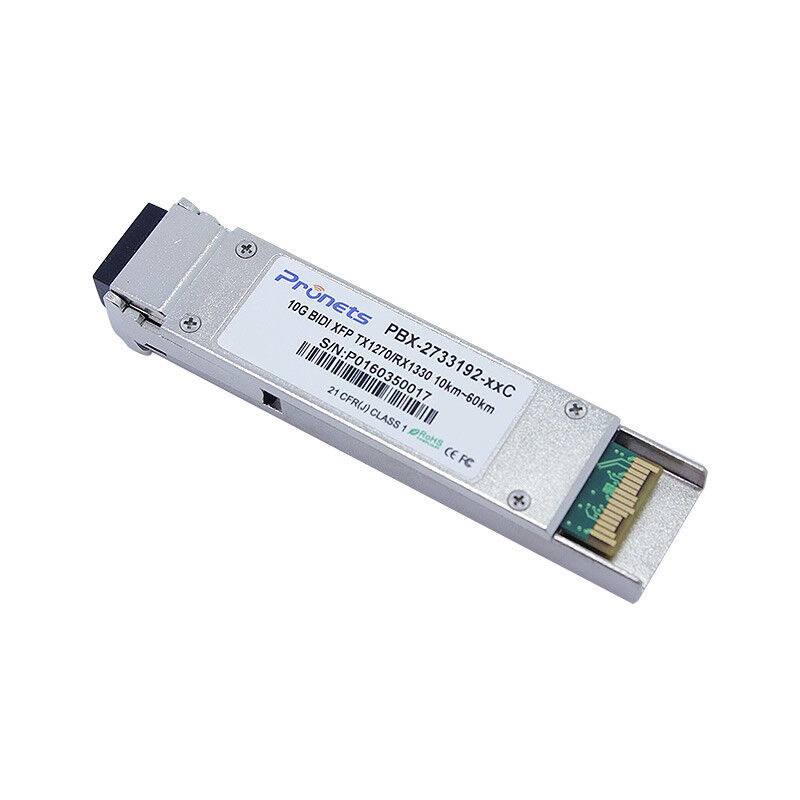

10Gbps XFP Bi-Directional Transceiver, 20km Reach
1270nm TX / 1330 nm RX
PBX-2733192-L2C 10Gbps XFP Bi-Directional Transceiver, 20km Reach 1270nm TX / 1330 nm RX
Features
¨ Supports 9.95Gb/s to 10.5Gb/s bit rates
¨ Hot-pluggable XFP footprint
¨ Maximum link length of 20km with SMF
¨ 1270/1330nm DFB laser Transmitter
and 1330/1270nm Receiver
¨ XFP MSA package with LC connector
¨ No reference clock required
¨ Loop Back Support.
¨ +3.3V,+1.8V power supply
¨ Power dissipation <2W
¨ Built-in digital diagnostic functions
¨ Temperature range -5°C to 70°C
Applications
¨ 10GBASE-BX 10G Ethernet
¨ 10GBASE-BX 10G Ethernet with FEC
Description
PRONETS PBX-2733192-L2C is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF.
The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of -5℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
